Elevate Aluminium Termination Bar – Pond Liner Fixing System (2m)
The Elevate Aluminium Termination Bar is a professional-grade solution for securely fixing rubber pond liners and EPDM liners to smooth substrates such as concrete, masonry, brickwork, and timber. Designed for long-term durability in aquatic environments, this system is ideal for garden ponds, koi ponds, wildlife ponds, and water features where a clean, watertight liner termination is essential.

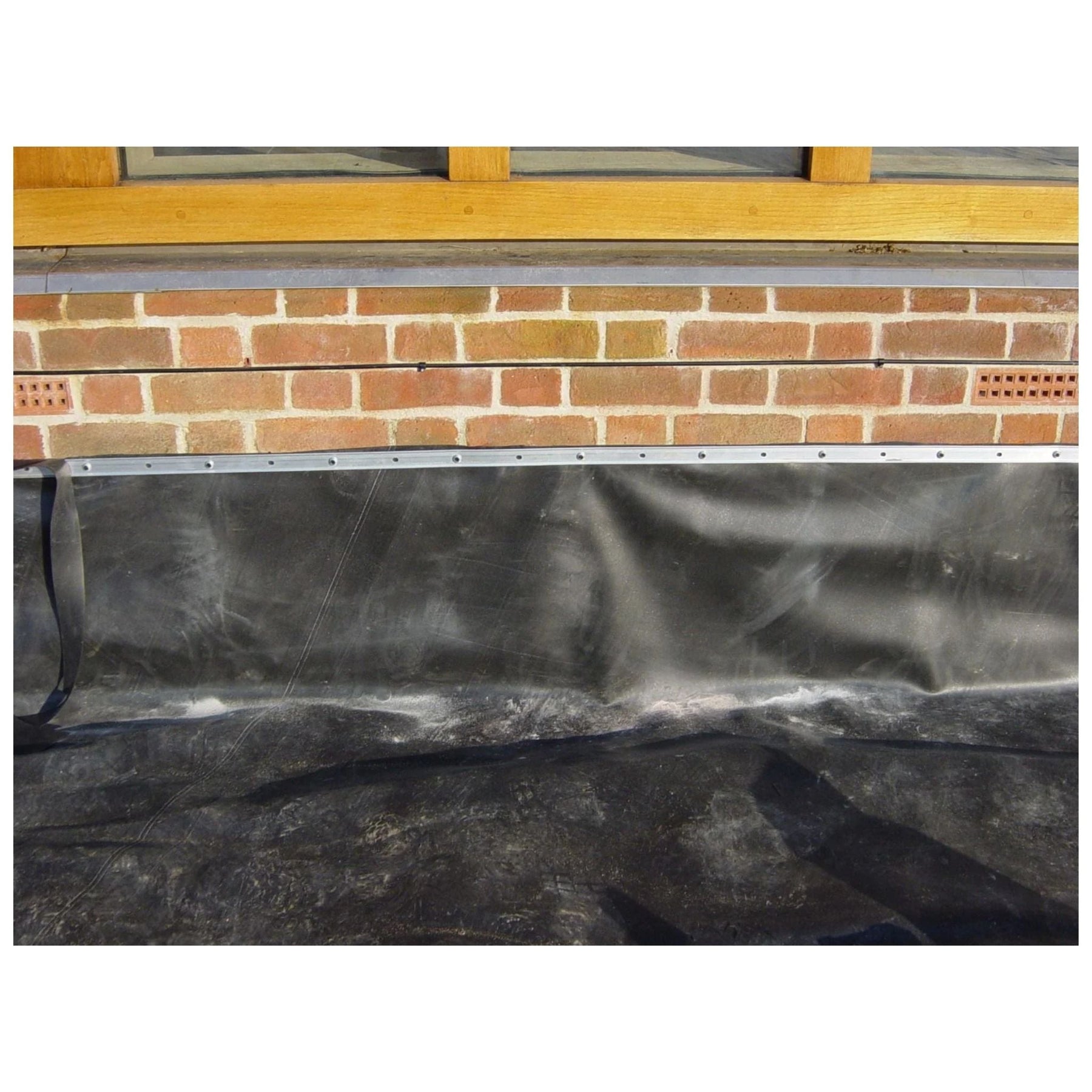

Termination bars are used where a pond liner needs to be mechanically fixed in place, such as at raised pond walls, vertical edges, or formal pond designs. The Elevate termination bar provides a strong, neat finish while preventing liner slippage over time.
Watertight Compatibility with Elevate Water Block Sealant

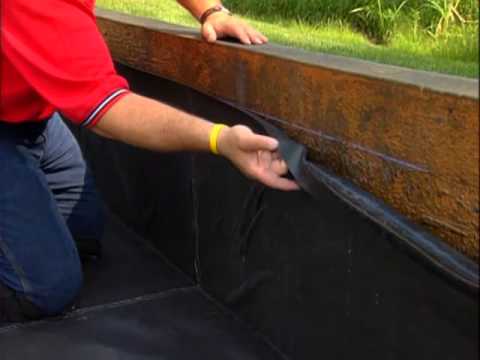

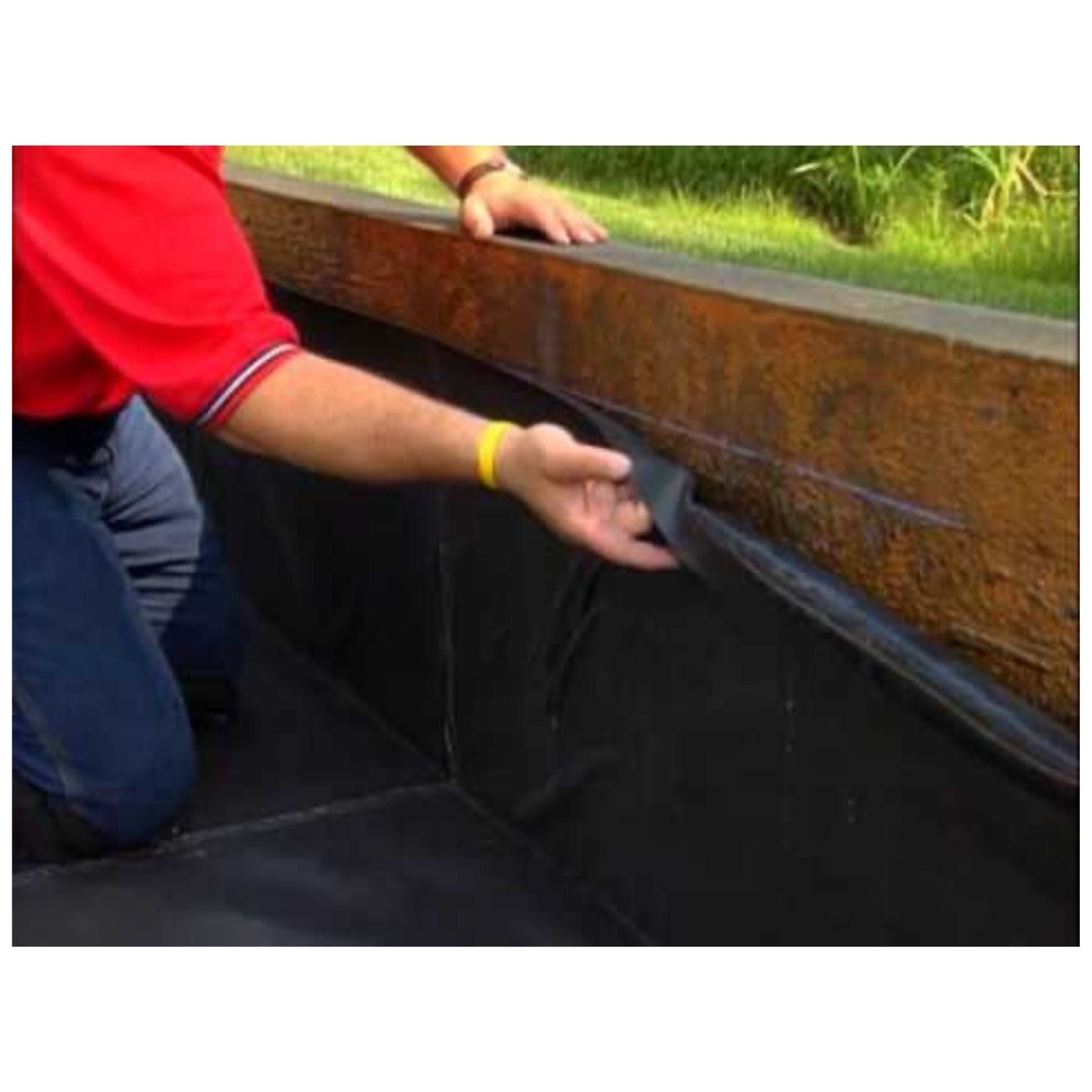

When installing, an uninterrupted bead of Water Block is applied behind the pond liner at the exact height where the termination bar will be fixed. As the bar is mechanically fastened, the fixings pierce the liner; the Water Block compresses behind the liner to form a permanent, non-drying, watertight seal, preventing water from tracking behind the liner or escaping the pond structure.
For complete sealing, a small bead of Elevate Lap Sealant should then be applied over each fixing point where the liner has been penetrated. This creates a secondary waterproof barrier and is especially important in koi ponds, where consistent water levels are critical for fish health.
Ideal for Pond Liner Repairs and Joining Systems
The Elevate termination bar system is widely used alongside other pond liner repair and joining products, making it suitable for both new pond construction and liner refurbishment projects. It integrates seamlessly with compatible accessories available in our Pond Liner Joining & Repair Collection, including tapes, sealants, and EPDM repair materials.
Key Benefits
Secure mechanical fixing for EPDM and rubber pond liners
Suitable for koi ponds, garden ponds, and aquatic installations
Compatible with Elevate Water Block sealant for watertight results
Prevents liner slippage and hidden water loss
Professional finish for raised and formal pond designs
Corrosion-resistant aluminium construction
Ideal for pond builds, liner repairs, and upgrades

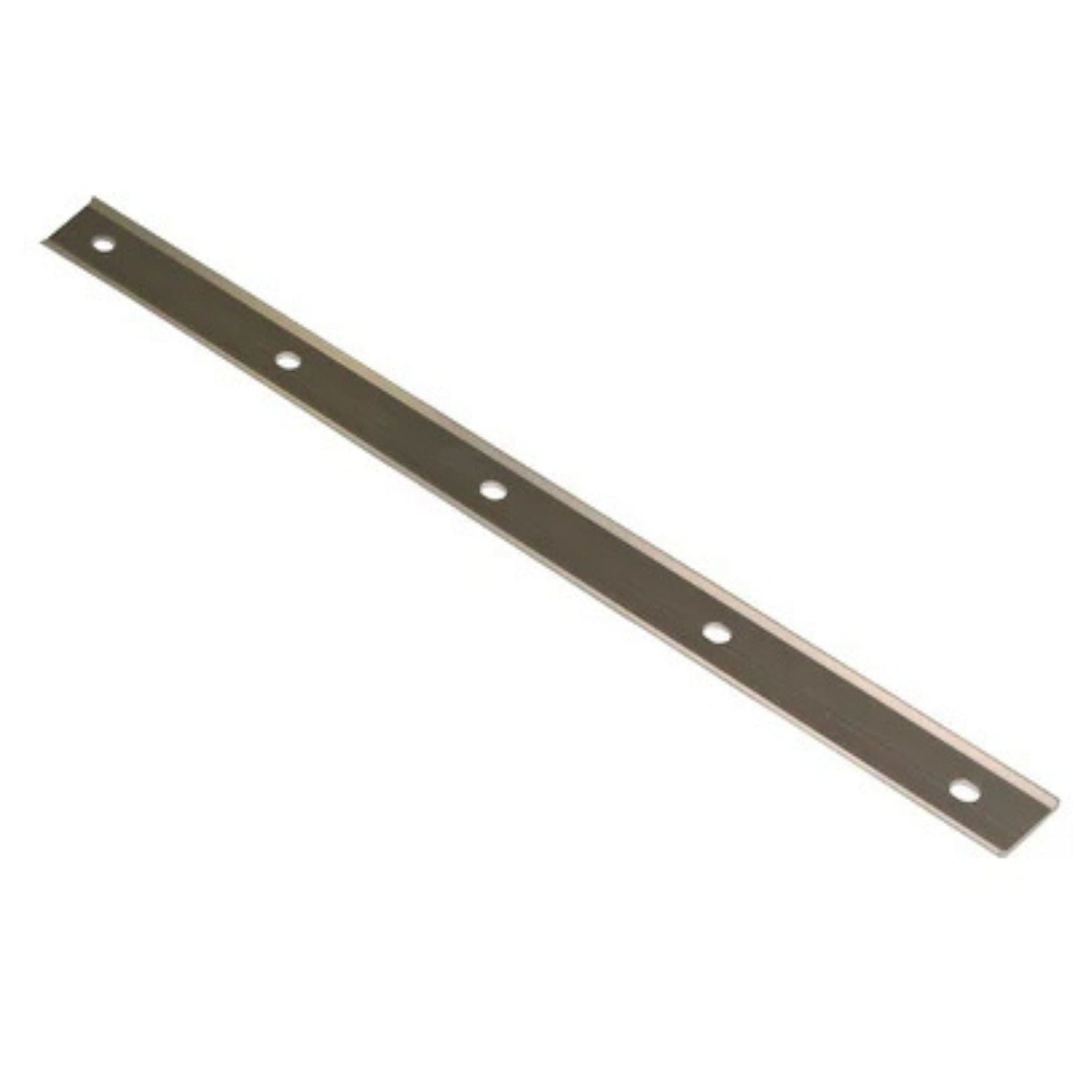

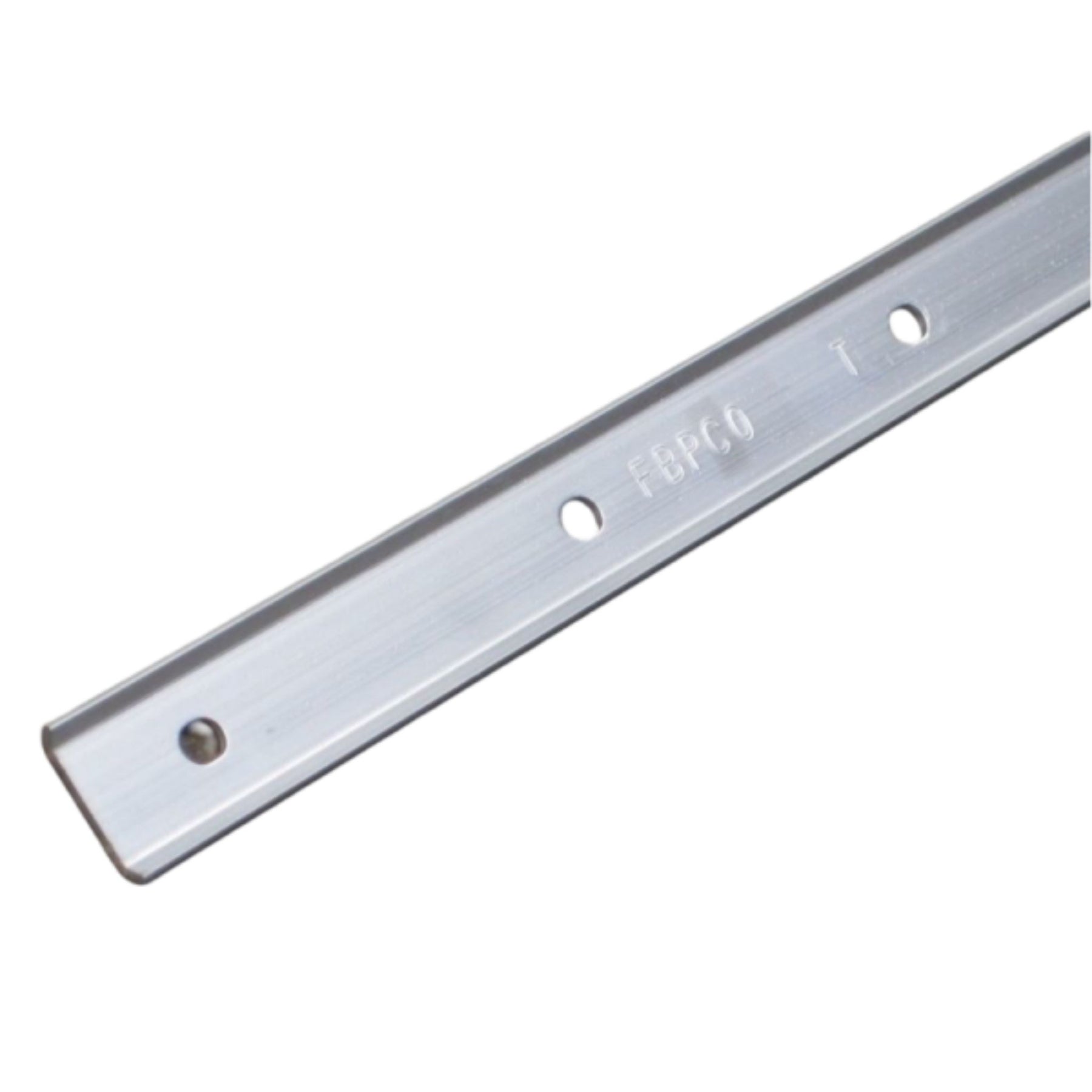

Product Specifications
Product Type: Pond liner termination bar
Material: Aluminium
Length: 2000 mm (2 metres)
Width: 27.4 mm
Depth: 2.2 mm

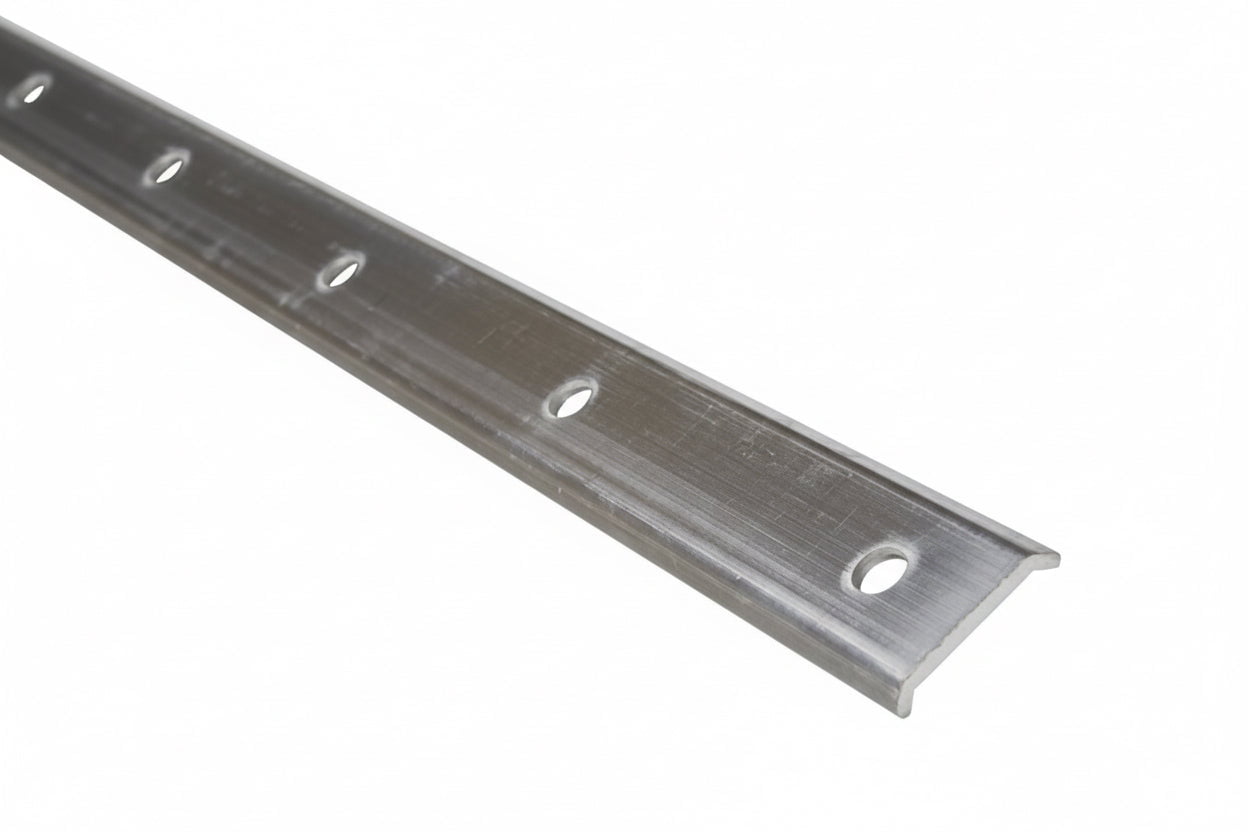

Fixing Holes: Pre-drilled at 50 mm intervals
Recommended Fixing Spacing: Maximum 300 mm
Compatible Sealants:
Elevate Water Block (behind liner)
Elevate Lap Sealant (over fixings)
The Elevate Aluminium Termination Bar is a trusted, professional solution for creating secure, watertight pond liner terminations. When combined with Elevate Water Block and the correct liner repair products, it delivers a long-lasting, leak-free result suitable for even the most demanding aquatic and koi pond installations.
