Novex BioBlue Monocular Microscope
- In stock, ready to ship
- Backordered, shipping soon

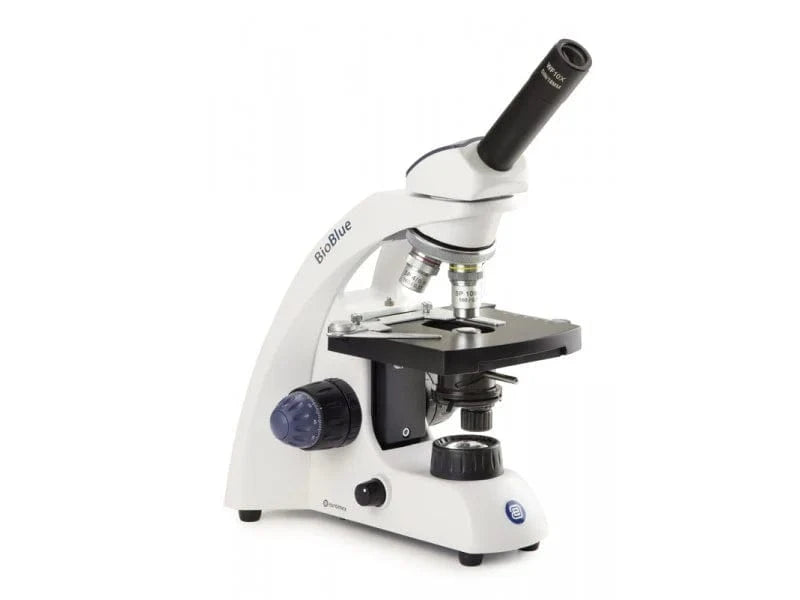

🔬 Novex BioBlue Monocular Microscope – Professional Aquatic & Pond Health Diagnostics
The Novex BioBlue Monocular Microscope is a premium-quality, precision instrument designed for pond keepers, koi enthusiasts, and aquatic professionals who demand crystal-clear imaging for fish health checks and parasite identification. With advanced optics, a durable build, and cordless LED illumination, this model delivers laboratory-level performance in a portable format — making it perfect for use at home, in the lab, or on-site by the pond.
Equipped with semi-plan objectives and anti-fungal, anti-reflection coated optics, the BioBlue ensures maximum light throughput and distortion-free clarity, so you can diagnose and act quickly to protect your fish.
✅ Key Features & Benefits
-
Secured DIN WF 10x/18mm eyepiece with pointer for accurate sample navigation
-
Monocular head, 45° inclined and 360° rotatable for comfortable viewing from any angle
-
Reversed quadruple revolving nosepiece on smooth ball bearings for easy magnification changes
-
Semi-plan objectives: 4x, 10x, and spring-loaded S40x for sharp, colour-true images across the field of view
-
Anti-fungus treated and anti-reflection coated optics for long-term clarity and brightness
-
Coaxial coarse and fine adjustments with 200 graduations, precision 2μm, and 0.4mm per rotation for pinpoint focusing
-
Total travel of approx. 23mm with friction adjustment for user control
-
Plain 130 × 130mm stage with 70 × 28mm mechanical stage for secure and accurate sample positioning
-
Height-adjustable Abbe condenser (N.A. 1.25) with iris diaphragm and filter holder for optimal light control
-
1W cordless LED illumination powered by 3 rechargeable batteries — plus internal 100–240V power supply (CE)
-
Includes power cord and dust cover, supplied in protective Styrofoam case
📊 Technical Specifications
| Feature | Details |
|---|---|
| Magnification | 40x, 100x, 400x |
| Head | Monocular, 45° inclined, 360° rotatable |
| Objectives | Semi-plan 4x, 10x, S40x |
| Eyepiece | DIN WF 10x/18mm with pointer |
| Stage | 130 × 130mm plain, 70 × 28mm mechanical |
| Condenser | Abbe N.A. 1.25, height adjustable, iris diaphragm |
| Focusing | Coaxial coarse & fine, precision 2μm |
| Illumination | 1W LED, cordless, rechargeable batteries |
| Power | Internal 100–240V power supply |
| Accessories | Power cord, dust cover |
| Weight/Size | Portable, supplied in Styrofoam case |
🧭 Ideal For
-
Koi keepers & pond owners performing skin scrape and gill checks
-
Parasite identification for early diagnosis and treatment
-
Educational & laboratory work requiring high-quality imaging
-
Mobile pond and aquaculture health monitoring
🌐 Build Your Complete Pond Testing Kit
Pair this microscope with our water testing equipment for a full diagnostic setup to keep your pond ecosystem balanced and your fish healthy.
Explore more options in our 👉 Microscope Collection.
